FORGINGS FOR MOVABLE BRIDGES
.jpg)
Forgings To Meet Bridge Formula and Bridge Investment Program Initiatives
Most US bridges were engineered with a lifespan of 50 years. Currently, 42% of US bridges have reached that age which is why the Building A Better America, the Bipartisan Infrastructure Law to replace, rehabilitate, preserve and protect US bridges, is critical to US infrastructure. Diving deeper into bridge design, we know that the maintenance and performance monitoring of movable bridges is more critical than that of fixed bridges, given the dual service role of a movable bridge. Additionally, movable bridges have more potential for deterioration and other problems with the integrated systems essential for ensuring their operation and safety.
At Scot Forge, we look to enhance the capabilities of civil engineers by providing more than 125 years of metal forming expertise to help rethink historical design and support safe transit for decades to come. We know forgings are the perfect choice for many bridge components, delivering the high-structural strength required for the safe passage of vehicles and vessels.
Asphalt & Road Restoration
Asphalt is one of the world's oldest materials for engineering, used since the beginning of civilization; it is robust and flexible. Asphalt is a sustainable paving solution made from a mixture of aggregates, binder and filler, which has weather and chemical-resistant properties and adapts to various uses—both stiff and resistant to distortion, and flexible and strong enough to resist cracking. These attributes make asphalt well suited for handling applied pressure from motor vehicles on roads, stresses of expansion joints and patches and extreme wear and tear of airport runways. Other asphalt applications include:
Waterproofing tunnels, bridges, dams and reservoirs.
Rustproofing and soundproofing metal pipes and automotive under-bodies.
Soundproofing walls and ceilings.
Extensive Inventory & Forging Expertise
At Scot Forge, our technically trained account managers are dedicated to helping you become the strongest link in the supply chain in our nation’s efforts to improve roads, bridges, public transit and rail transportation systems. We know that in periods of unplanned down time or critical situations, thousands—if not millions—of dollars can be lost each day.
Forgings For Asphalt Industry Equipment
Quarry: crusher shafts, eccentrics, ring gears, bull gears
Drum Mixers: tubes, hollows, gears, bearings
Dryers: riding rings, cylinders
Blowdown Drum Header: seamless tubes
Counter-Flow Drum Mixers & Parallel-Flow Drum Mixers:
support rollers, rings, gears
Movable Bridges
Each movable bridge has specialized features and unique mechanisms for movement. The most common movable bridges and their displacements types are:
Bascule Bridge (Trunnion)
Rolling Lift Bascule Bridge (Rolling Lift)
Swing Bridge
Retractile Bridge
Vertical Lift Bridge

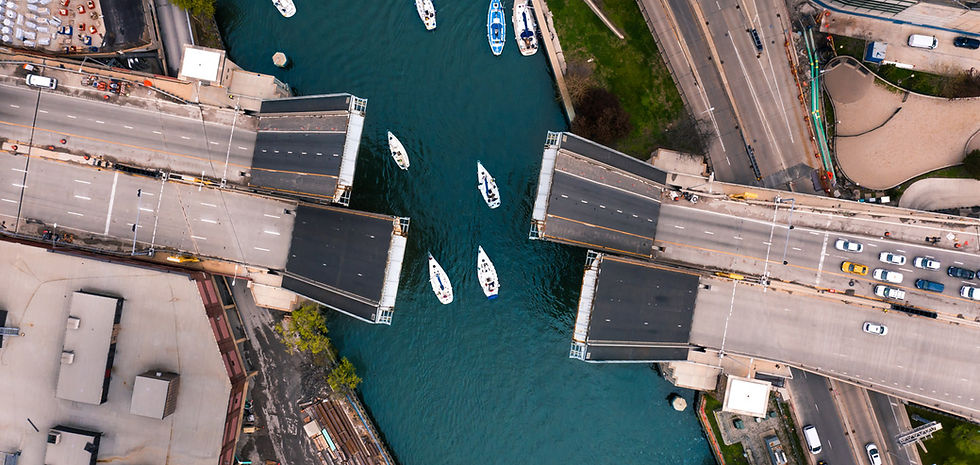

A movable bridge, or moveable bridge, sometimes known as a drawbridge, is a bridge located on a navigable waterway that can temporarily move one or two spans to increase vertical clearance for vessels or traffic to pass underneath. Movable bridges help lower infrastructure costs by limiting high piers and long approaches. However, they have the principal disadvantage of traffic on the bridge is stopped when it is open for traffic passage underneath. Movable bridges may be located in marine environments, snow and ice zones, and carry heavy traffic loads.
Forged Parts For Movable Bridges

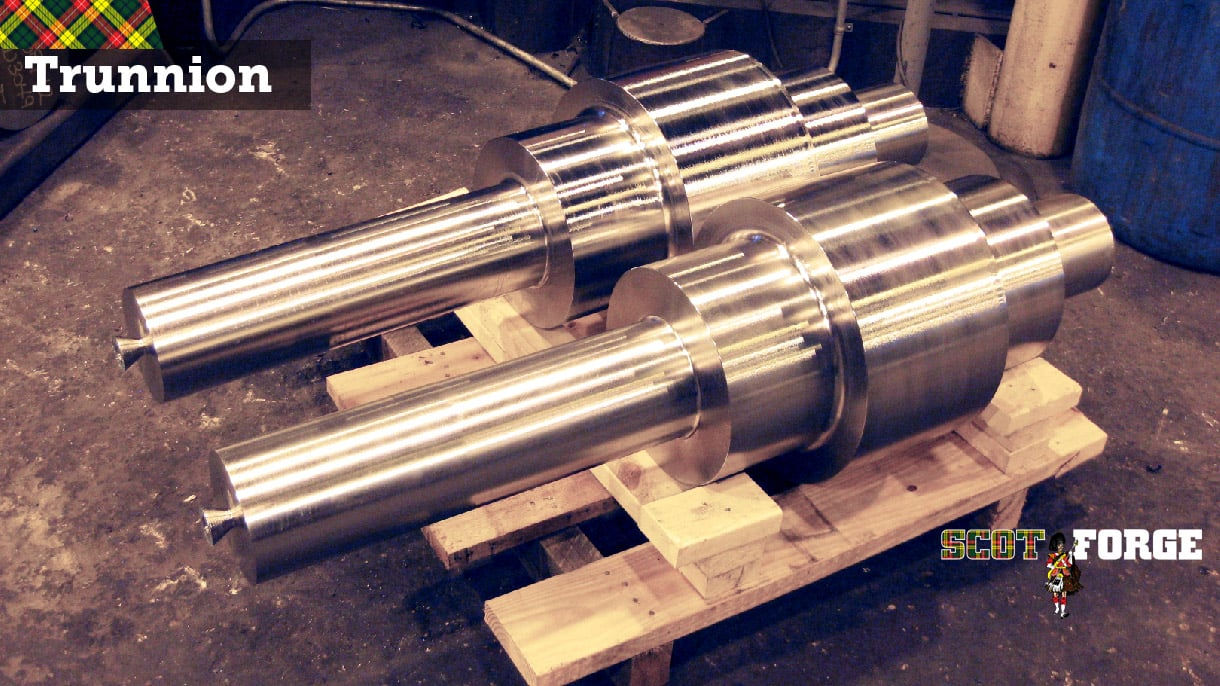

Shafts: Pinions, trunnions, floating shafts, crankshafts, tower sheave shafts, rope shafts, gudgeon pin, strut pin, link pin, diagonal fin

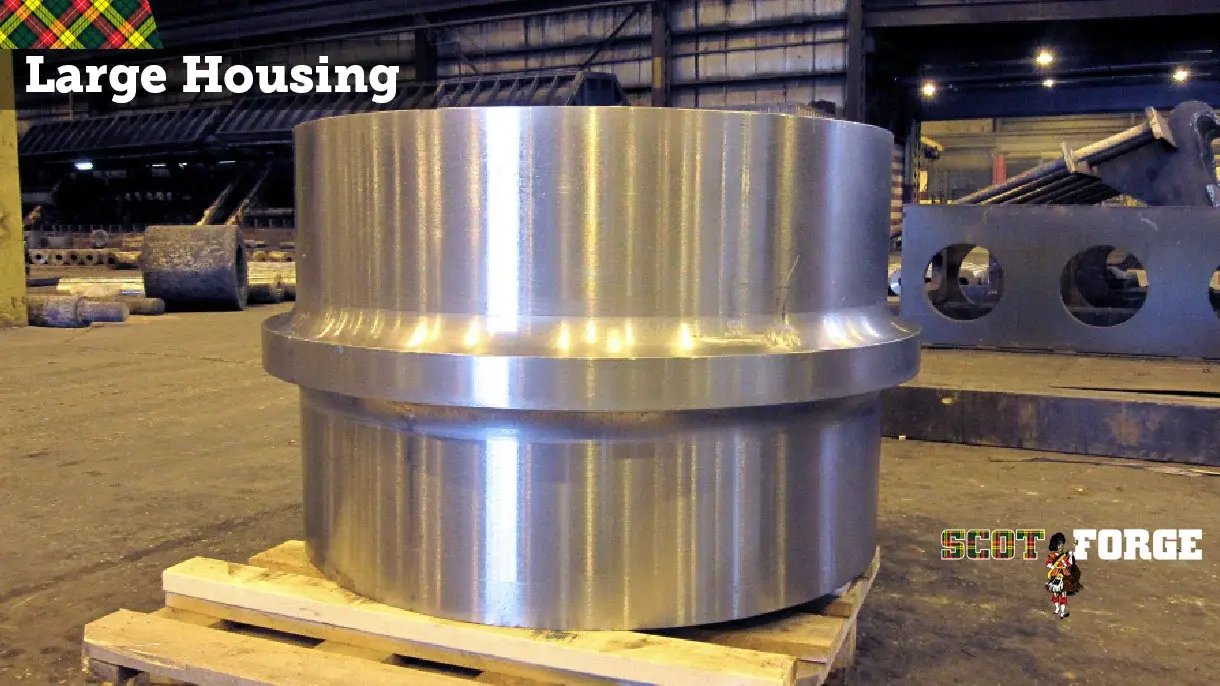

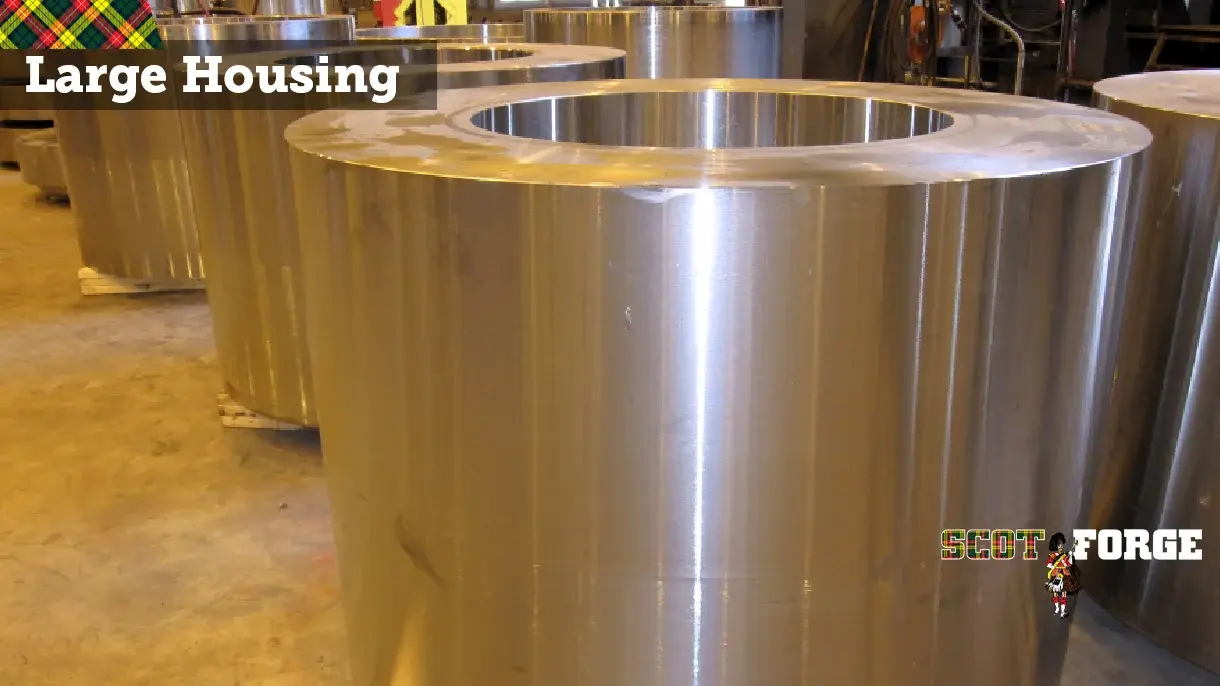

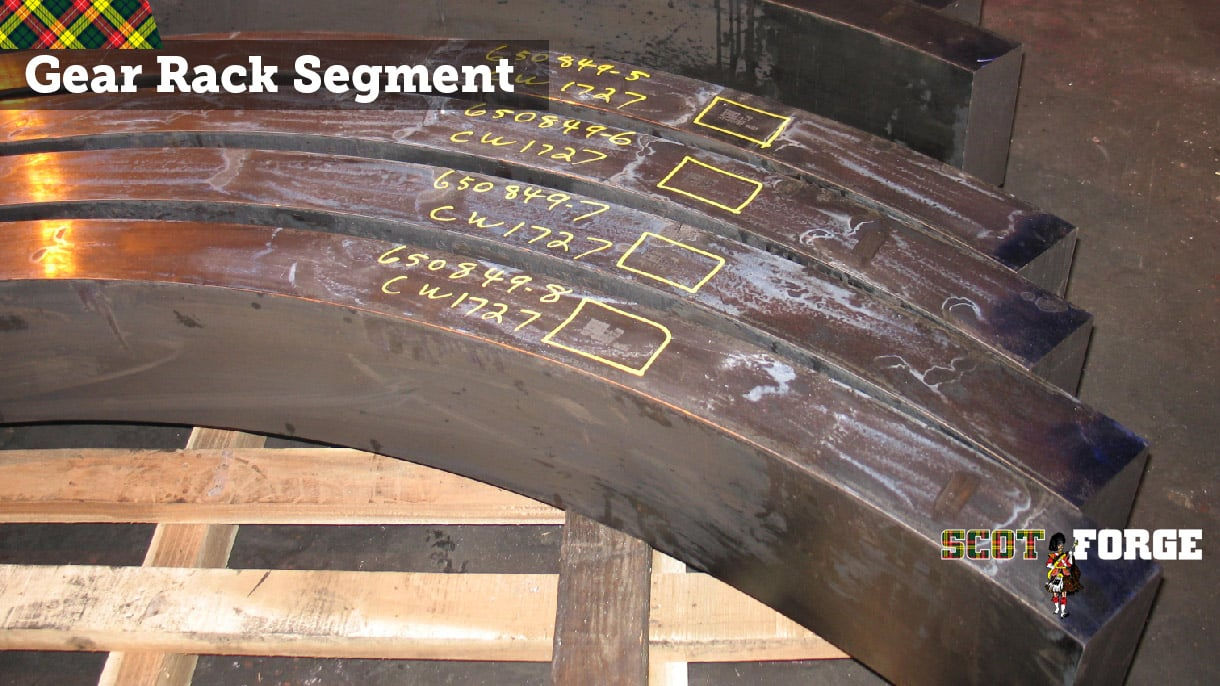

Flats: Curved or flat racks, tracks and treads, lock bars (we can transition between round and rectangular cross-sections), receiving sockets, receiving shoes, guide housings
Rings: Ring gear, hex sleeves and hex jam nuts, gudgeon collars

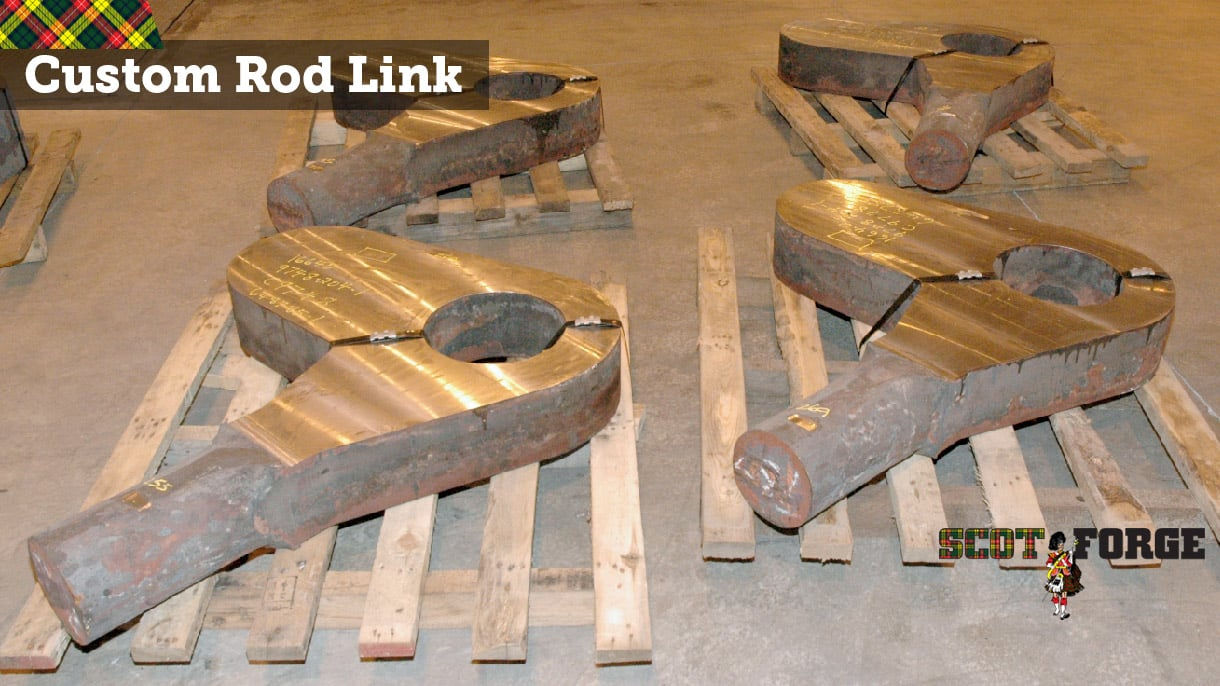

Torch Cut: Clevis, gudgeon links
Organizations like the Army Corps of Engineers work to mitigate section loss in the bridge's structural components. Natural deterioration such as corrosion can lead to misalignment, bending or deformation in lock switches, open gears and the electrical systems found on movable bridges. Additionally, heavy loads and thermal expansion effects can lead to malfunctions in the operation of the bridge.
Extensive Inventory and Forging Expertise
At Scot Forge, our extensive material inventory, production capabilities and experienced technical support combine to help meet your most demanding requirements. Our technically trained account managers possess experience working to ASTM A668, ASTM A291 and other various AREMA, AASHTO and DOT requirements. We understand the importance of short lead times and breakdown services, too.
Extensive Inventory & Forging Expertise
At Scot Forge, our technically trained account managers are dedicated to helping you become the strongest link in the supply chain in our nation’s efforts to improve roads, bridges, public transit and rail transportation systems. We know that in periods of unplanned down time or critical situations, thousands—if not millions—of dollars can be lost each day. From the quarry to the kiln, Scot Forge delivers the metal components needed to keep your plant grinding.
Cement Industry Forged Wear Parts
Quarry: crusher shafts, eccentrics, ring gears, bull gears
Raw Mill and Coal Mill: grinding rollers, shafts, pinions, gears, bearings
Kiln: kiln tires, riding rings, kiln girth gears, support rollers
Forged Finish Grinding Cement Parts
Vertical Mills: shafts, pinions, gears
Ball Mills: girth gears, pinion gears, trunnion bearings, trunnion rollers
Reasons To Choose Scot Forge
FAST DELIVERY AND BREAKDOWN SERVICES
At Scot Forge, we understand the importance of on-time delivery. In critical circumstances, reduced lead times can be offered for breakdown and emergency orders in need of immediate production response.
A VAST INVENTROY OF MATERIALS
We maintain an extensive inventory of ferrous and non-ferrous materials commonly used for infrastructure applications. Along with our ability to certify grades of ASTM A291 and ASTM A668, this ready inventory eliminates many of the delays associated with order processing, allowing for shorter lead times and quick reaction to market changes.
FLEXIBLE SIZES, SHAPES AND QUANTITIES
No matter the grade of material or shape and size of the part, our facilities are designed to support both single-piece and high-volume manufacturing. Whether you need trunnions, pinions or rack/track segments, we will expertly certify your order under our accredited Quality Assurance Program.
TECHNICAL SERVICES
Our technically trained staff, backed by our metallurgical engineers and forging experts, can lend our experience and ensure delivery reliability. Our team has a complete understanding of DOT, Army Corps of Engineers and civil engineering specifications.
QUESTIONS? CONTACT A FORGING EXPERT
Scot Forge Difference
At Scot Forge, we know the importance of getting your parts on-time, as expected. However, for customers new to procuring forgings, ordering a forging that will meet all specifications for end-use applications may be a challenge, which is why finding a trusted supplier and partner is essential. Our employee-owners are here to ensure your project stays on track with our forgings by offering:
We offer many size forgings in both standard and unique geometries to meet your needs.
Pro Tip - Did you know near-net shapes can save you time and money? Oftentimes, a customer calls to order a disc, which they will later machine down to a more shaped part. By working with our technically trained sales team, you can get your finished product shape as close as possible to optimize your production process.
